Raw Material Selection: GG25 / HT250 High-Quality Gray Cast Iron

Complete Manufacturing Process of Our Cast Iron Motor Housing

1. Resin sand casting process or lost foam casting process

   We use advanced resin sand casting technology for motor frame blanks. According to client’s drawings, we manufacture custom aluminum molds to form integrated heat dissipation ribs, mounting bosses, terminal box bases and lifting lugs. After molding, melting and pouring high-temperature molten iron, we carry out shakeout, gating and riser removal, and grind all flash and burrs for smooth casting surfaces. All casting blanks go through stress relief annealing to avoid deformation during subsequent machining, fully meeting ISO 8062 casting tolerance standards as marked on overseas client technical drawings. Lost-foam casting is a type of evaporative-pattern casting process that is similar to investment casting except foam is used for the pattern instead of wax. The lost foam casting techniques take advantage of the low boiling point of polymer foams to simplify the investment casting process by removing the need of melt the wax out of the mold. Compared with investment casting method and sand casting techniques, lost foam casting is one of the most cost-effective and environmentally friendly metal casting process for creating complex and intricate metal parts by using a foam pattern that evaporates when molten metal is poured into it:

2. Precision CNC Machining Procedure

   The rough cast motor housing will be processed by CNC lathes, boring machines and milling equipment. We precisely machine bearing chambers, front & rear end stop shoulders, base mounting planes, drill and tap all installation thread holes, ensuring dimensional tolerances follow ISO 2768-M general machining tolerance rules. For special customized sizes, we adjust machining parameters to match your strict limit deviation requirements.

3. Surface Treatment & Coating Process

   After shot blasting to remove casting scale and oxidation, we apply anti-rust primer as required.

Core Advantages of Our Custom Cast Iron Motor Housing

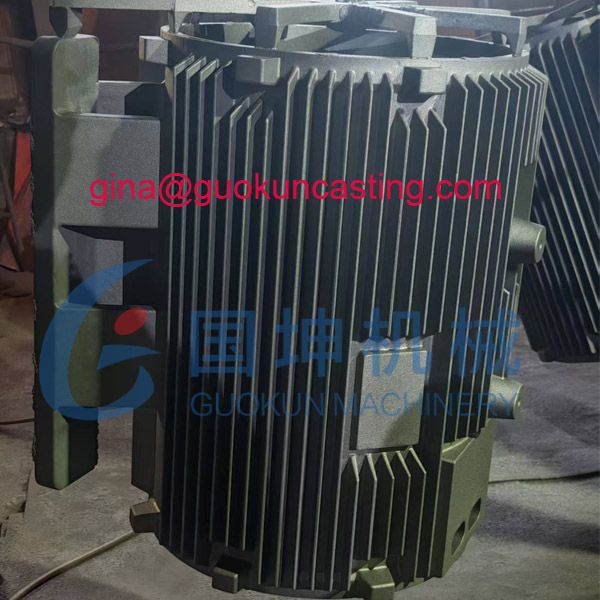

1. Excellent Heat Dissipation Structure: Integrated thick cooling ribs are cast as one piece on the outer wall of the motor shell, greatly expanding heat exchange area to quickly export heat generated by running motors, preventing coil overheating damage for heavy-duty motors.
2. Strong Vibration & Noise Reduction: The dense gray cast iron material has superior damping capacity, absorbing vibration during high-speed motor operation and lowering overall equipment noise, ideal for long-running industrial drive equipment.
3. High Structural Rigidity & Durability: Integrally cast one-piece motor frame avoids welding cracks and deformation risks seen on welded sheet metal housings, with uniform wall thickness and stable mechanical performance for heavy load working conditions.
4. Fully Customizable Service: Our metal casting factory can customize motor housings of all frame sizes (100, 132, 160, 200, 250, 315 and larger specifications). We tailor cooling rib layout, mounting foot structure, terminal box position, lifting lug design, wall thickness and logo embossing per your 3D models; we can cast brand logos with specified font height and depth on motor shell surfaces as requested.
5. Strict Quality Control System: We test casting ovality, wall thickness uniformity, surface roughness Ra value and casting defects (air holes, shrinkage cavities) 100% before delivery, rejecting any motor enclosure with internal flaws on critical machining surfaces. All dimensional inspection reports can be provided for overseas engineering projects.
6. Wide Standard Compatibility: Our custom cast motor housings fit international standards for three-phase asynchronous motors, compatible with B3 horizontal mounting, B5 vertical flange installation and mixed mounting structures for flexible assembly.

Wide Application Scenarios of GG25 Cast Iron Motor Shells

• Mining machinery driving motors, industrial water pump & fan motors
• Air compressor, injection molding machine, metallurgical rolling mill drive motors
• Conveyor line main drive motors, construction engineering equipment motors
• General industrial production line high-power electric motors

  Export clients from Russia, Turkey, Southeast Europe frequently order our 315 series custom motor cast housings to assemble complete industrial motors, thanks to our compliance with GOST, ISO and local mechanical drawing technical requirements.
