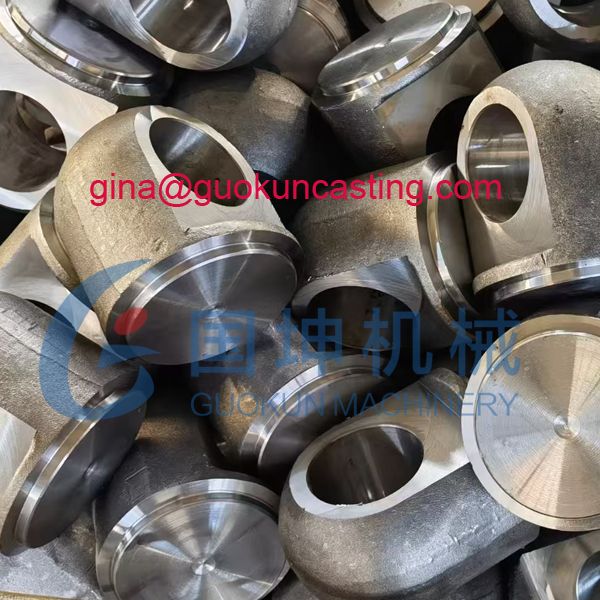

Forged Hydraulic Cylinder Rod Eye

Drop forging, also called closed die forging is a metal shaping process where a heated metal billet is placed between dies and struck by a hammer or press to form the desired shape. It is commonly used for high-strength components like hydraulic cylinder yokes, connecting rods, gears.

The hydraulic cylinder yoke is a critical component that connects the cylinder to other heavy-duty machinery, such as construction equipment, excavators, loaders, cranes, agricultural machinery, tractors, harvester, mining & industrial hydraulic lifting equipment.

If you need customized hydraulic cylinder yokes, please feel free to contact gina@guokuncasting.com or WhatsApp +86-18132789710 to get the quotation

Hydraulic Castings Tags: Hydraulic cylinder clevis

Description

Forged Hydraulic Cylinder Rod Eye | Custom Non-Standard Hydraulic Forged Components

1. Available Forging Materials

We produce forged hydraulic rod eyes with mainstream hydraulic-grade forging steels to match global industry standards: AISI 4140 alloy steel, AISI 8630 alloy steel, ASTM A519 1026 carbon steel, 20# steel, ASTM A572 Gr.50/Gr.65 HSLA steel, 20CrMnTi, 42CrMo, 35CrMo, 40Cr, 34CrNiMo6, 30CrMoV9, plus ductile iron QT450-12 / ASTM A536 65-45-12 for cast alternative options. Our engineering team offers professional equivalent material replacement solutions to balance mechanical performance and procurement cost per your working pressure, load and drawing specifications, all materials come with official material test report (MTR).

2. Product Application

This forged rod eye is an indispensable core hydraulic cylinder component, widely fitted onto hydraulic cylinders for construction machinery, agricultural equipment, mining machinery, forklift and industrial hydraulic systems. It acts as hinged connection joint between cylinder body and equipment chassis, enduring cyclic tension, compression, shock load and high hydraulic pressure in rigorous working environments.

3. Processing Technology

Our core production adopts hot closed-die forging technology for high-performance hydraulic forged parts:

Solid steel bar raw material is heated to precise forging temperature, precision die forging reforms internal metal grain structure along component load path, fully eliminates inner shrinkage hole, porosity and loose grain defects common in sand casting. Finished forged blank owns dense metallurgical texture, outstanding tensile strength, fatigue resistance and impact toughness, perfectly suited for heavy-duty high-pressure hydraulic service.
Follow-up customized heat treatment including quenching & tempering, normalizing to adjust hardness and mechanical property, complying with AISI & ASTM international steel standards for 4140 /8630 alloy steel forgings.
Complete in-house CNC precision machining for inner bore, end face, threaded hole to achieve tight tolerance, guarantee seamless assembly with hydraulic cylinder assemblies.

Beyond standard forging specifications, our foundry specializes in custom non-standard forged hydraulic parts developed strictly from customer drawings or physical samples.

Baoding Guokun Machinery is located in Zhuzhuang Industrial Zone, Lianchi District, Baoding City, Hebei Province. It is a comprehensive enterprise with forging and machining capabilities. Our company can produce automotive forgings, coal machinery forgings, agricultural machinery and petroleum forgings, starter equipment forgings, transmission forgings, and machined parts.

Main equipment: one 600 ton clutch type high-energy screw press, one 1000 ton clutch type high-energy screw press, three 630 ton double disc friction presses, one 50K fully hydraulic forging hammer, one 400 ton clutch type high-energy screw press, one 750KW thyristor intermediate frequency diathermy furnace, two 500KW thyristor intermediate frequency diathermy furnaces, two 250KW thyristor intermediate frequency diathermy furnaces, one 150KW thyristor intermediate frequency diathermy furnace, eight open and fixed platform presses, and other auxiliary equipment.

Main testing equipment: Spectral analyzer, tensile testing machine, impact testing machine, coordinate measuring instrument, roughness meter, digital Brinell hardness tester, chemical analysis, magnetic particle flaw detector, metallographic analyzer and other testing equipment.

Close die forging or mold forging process
Material Selection	Choose the appropriate metal (e.g., carbon steel, alloy steel, aluminum, or titanium) based on the component’s requirements. Ensure the required steel meets the required chemical composition and quality standards. Baoding Guokun will test the material’s chemical composition before storage. Baoding Guokun has years of experience working in the following grades of carbon steel, alloy steel and stainless steel. We are able to drop forge almost every type and grade of carbon steel material available on the common market, such as 4140(42CrMo4), 8620, 1018, 1035 or C35, 1080, 4340, 1137, etc.
Billet Preparation	Cut the raw material into billets of the required size. And heat the billet to the forging temperature (typically 1100°C–1200°C for steel) to make it malleable
Die design and preparation	Design the dies (upper and lower) to match the final shape of the component. Dies are typically made from high-strength tool steel and are precision-machined.
Forging	Place the heated billet into the lower die. Apply pressure using a hydraulic or mechanical press to force the metal into the die cavity. The metal fills the die, taking the shape of the mold
Flash Formation & Trimming	Excess metal, called flash, flows out of the die cavity through small gaps. Remove the flash and excess material using trimming dies or machining
Cooling	Allow the forged part to cool slowly (for some materials) or control the cooling rate to achieve desired properties.
Heat Treatment	Perform heat treatment processes like normalizing, quenching, and tempering to enhance mechanical properties (e.g., hardness, toughness)
Finishing	Machine the forged part to achieve precise dimensions and surface finish. – Apply surface treatments (e.g., sand blasting, coating) if required

Baoding Guokun’s drop forging process

4. Core Factory Advantages for Global Buyers

✅ Specialized custom non-standard hydraulic forging & casting manufacturer, support prototype small-batch trial order and large-volume mass production flexibly

✅ Competitive factory-direct pricing with rigorous full-process QC inspection, superior product quality at economical cost

✅ Abundant manufacturing & international export experience, long-term stable cooperation with massive domestic enterprises and global overseas customers, especially US market; proficient in US customs clearance requirement and export certification, provide complete inspection & material certification documents for worldwide shipment

✅ One-stop full service: drawing design optimization → forging die development → hot die forging → heat treatment → CNC precision machining → surface finishing → export customized packaging

Advantage of Baoding Guokun drop forged yokes

Superior strength: Grain flow follows the yoke’s shape, enhancing structural integrity.

High durability: Resists fatigue, impact and heavy loads better than cast yokes or welded yokes.

Precision & consistency: Tight tolerances ensure reliable performance in hydraulic systems.

Cost-effective for mass production: Lower per unit cost compared to machining from solid billet.

Better surface finish: Reduced porosity compared to casting.
