Description

Cast Pump parts factory in China

Baoding Guokun can manufacture a multitude of pump casting parts, for example, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump vane and all other customized pump cast pump components for the centrifugal pumps, vertical centrifugal pump, horizontal centrifugal pump, fire hydrant pump, gear pump, lobe pump, piston pump vacuum pump and water pump. Depending on your pump types and requirements, Baoding Guokun can cast and machine different pump replacement parts in heat-resistant stainless steel, ductile iron, gray iron, aluminum alloys and other metals.

Water Pump Parts Lists:

Pump housing or pump casing: The pump housing is the pump outer shell that encases the pumps. It is typically made of cast iron or aluminum materials, although a number of modern engines use stamping steel housings. The cast grey iron pump casings are with low-cost than aluminum pump volute.

Pump impeller: The pump impeller is the rotating component in the pump that directly transfers the energy from the motor into the fluid being pumped. Pump impellers are classified as one of three types: Open impeller, semi-open impeller, or closed impeller. Their classification is based on whether they have a protective shroud or not.

Pump cover plate, back plate: Baoding Guokun can produce various cover plates in WCB ( Weldable cast iron), stainless steel CF8 or CF8M, duplex stainless steel and aluminum alloys.

Pump back liner: The slurry pump back liner is the inner lining of the slurry pump back casing, which a crucial pump wet components where the shaft passes through. The pump back liner is typically made of high chromium cast irons, carbon steel and stainless steel with rubber, polyurethane or special wear-resistant coatings.

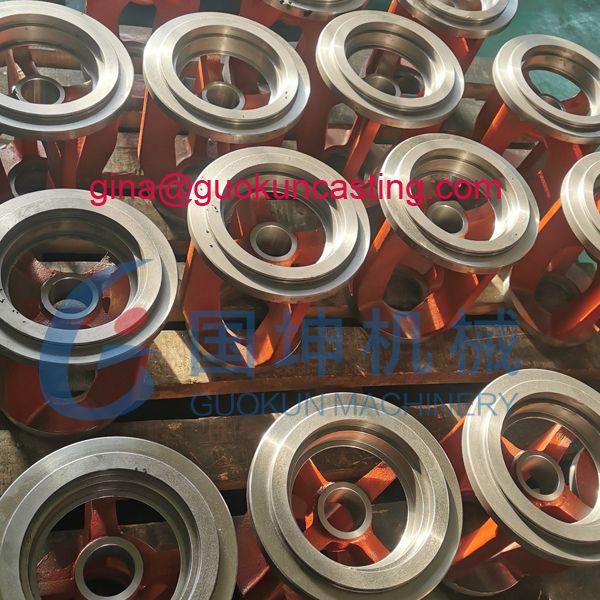

Pump frame: Baoding Guokun can produce the standard or customized pump bearing housing, pump bearing frames in cast iron, ductile iron, stainless steel 316 or 304. Sand casting and investment castings are suitable for pump casting parts.

Other casting pump parts as per your drawings.

Material for pump casting components:

Metal process for pump castings:

Investment casting cast steel pump parts: Silica sol investment casting process is a very efficient and accurate casting technique that offers high precision, net-shape pump castings, smooth casting surface, reduced machining process for your stainless steel pump casting parts in UNS S31600, 316, 304, 316L, CF8, CF8M and other stainless steels.

Sand molding casting cast iron pump parts: Sand casting process is suitable for your cast iron pump parts in cast ductile iron ASTM A536 and gray iron ASTM A48. Compared with investment casting pump parts, the cast iron pump parts produced by sand casting are with lower cost and better inner quality.

Baoding Guokun sand casting pouring process

Die casting or gravity casting aluminum pump parts: For aluminum casting pump parts in A380, A356, ADC10 or ADC12, Baoding Guokun will use die casting, sand casting or gravity casting to produce them. Based on 25 year’s casting experience, we can offer you the suitable casting process and metal choice for your pump parts.

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, power generation investment casting, Medical casting, marine industry casting
