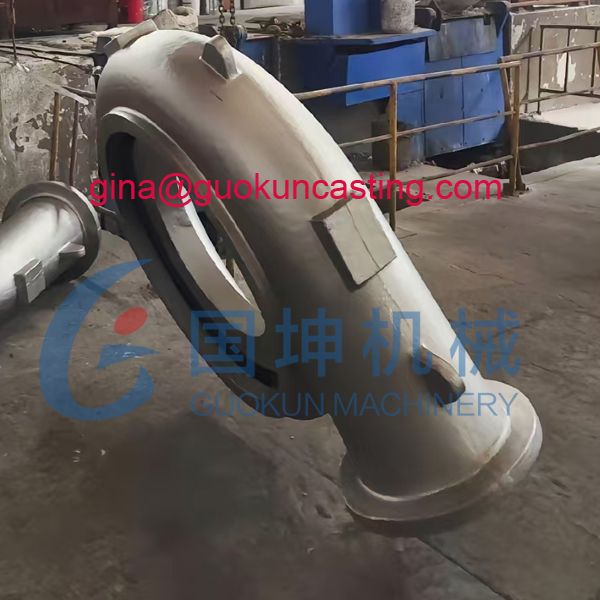

Stainless steel sand casting pump volute manufacturer

Part Name: Pump castings, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump vane and all other customized parts

Metal: Stainless steel, cast iron and aluminum alloys

Metal casting process: Silica sol investment casting, sand casting, die casting and gravity casting process.

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry. Please mail your inquiry to gina@guokuncasting.com

Sand Casting, Pump Castings Tags: pump casing

Description

Cast Pump parts factory in China

Baoding Guokun can manufacture a multitude of pump casting parts, for example, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump vane and all other customized pump cast pump components for the centrifugal pumps, vertical centrifugal pump, horizontal centrifugal pump, fire hydrant pump, gear pump, lobe pump, piston pump vacuum pump and water pump. Depending on your pump types and requirements, Baoding Guokun can cast and machine different pump replacement parts in heat-resistant stainless steel, ductile iron, gray iron, aluminum alloys and other metals.

Pump castings, China sand casting foundry

What is a Pump Volute?

The pump volute is a crucial component in centrifugal pumps, designed to convert the kinetic energy of the fluid into pressure energy. It is a spiral-shaped casing that surrounds the impeller. As the fluid exits the impeller, it enters the volute, where the increasing cross-sectional area of the spiral slows down the fluid, thereby increasing its pressure.

How to produce a pump volute?

Casting or Fabrication: For cast iron pump volute or cast steel volutes, a mold is created, and molten metal is poured into the mold. After cooling, the casting is removed and cleaned. For stainless steel pump housing or other metals pump volute, the volute can be fabricated by cutting, bending, and welding metal sheets.

Machining process after sand casting or investment casting: The casted pump volute or fabricated volute is machined to achieve the precise dimensions and surface finish required.

Quality Control: The finished volute is inspected for dimensional accuracy, surface quality, and structural integrity. Baoding Guokun can offer you the chemical composition and mechanical properties report, X-ray report, PT report, 3D scan report, CMM report and pressure testing report for your sand casting stainless steel pump volute.

Sand Casting process, resin sand casting, green sand casting, precoated sand casting, shell mold casting process

Sand casting process is an industrial metal casting process that involves creating a mold from sand and pouring molten metal into it, generally used to cast the shaped parts of nearly any design, including large parts and those with internal passages. Baoding Guokun can produce various sand cast parts in cast iron, ductile iron, gray iron, low-carbon steel, mild steel, alloy steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc.

The process of Baoding Guokun sand casting involves several steps after producing a professional tool or mold, including:

No.	Steps	Details
1	Pattern Creation	A two-piece metal pattern is created in the shape of the desired part, typically from iron, aluminum or wooden material.For a single casting or small batches of castings, we prefer to produce to use the wooden material to manufacture the mold to save money for customers.For other sand casting parts in large quantity, we prefer to use aluminum or iron to improve the mold’s service life.
2	Mold creation	The two shell halves are joined together and securely clamped to form the complete shell mold. If any cores are required, they are inserted prior to closing the mold. The shell mold is then placed into a flask and supported by a backing material.
3	Pouring	The mold is securely clamped together while the molten metal is poured from a ladle into the gating system and fills the mold cavity.
4	Cooling	After the mold has been filled, the molten metal is allowed to cool and solidify into the shape of the final castings.
5	Raw Castings	After the molten metal has cooled, the mold can be broken and the casting removed. Trimming and cleaning processes are required to remove any excess metal from the feed system and any sand from the mold
6	Machining	Machining as per drawings

sand casting workshop

Why use stainless steel to produce stainless steel pump volute?Stainless steel is often used for customized pump volutes due to its excellent properties, which include:

Corrosion Resistance: Stainless steel is highly resistant to corrosion, making it ideal for pumping corrosive fluids or operating in harsh environments. Baoding Guokun, the China pump volute manufacturer, can produce the pump volute for specially designed pumps for chemical processing, oil and gas, wastewater treatment and marine applications. If you need centrifugal pump volute, diaphragm pump volute, peristaltic pump housing, please contact gina@guokuncasting.com to get more information and quotation.
Strength and Durability: Stainless steel provides high strength and durability, ensuring the volute can withstand high pressures and mechanical stresses.
Hygienic Properties: In industries like food and beverage or pharmaceuticals, stainless steel is preferred because it is easy to clean and does not react with the products being pumped.
Temperature Resistance: Stainless steel can withstand high temperatures, making it suitable for applications involving hot fluids.
Longevity: The use of stainless steel extends the lifespan of the pump volute, reducing maintenance costs and downtime. The 316 stainless steel pump volute, 304 pump housing or other duplex stainless steel pump volute will be produced in Baoding Guokun casting factory.

The stainless steel pump volutes ensures reliable and efficient pump performance, especially in demanding applications.

Baoding Guokun machinery

A High Quality China Foundry！

With a monthly capacity of 10,000kgs and with more than 25 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, power generation investment casting, Medical casting, marine industry casting
