Sand casting pump suction spool factory

Part Name: Pump castings, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump vane and all other customized parts

Metal: Stainless steel, cast iron and aluminum alloys

Metal casting process: Silica sol investment casting, sand casting, die casting and gravity casting process.

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry. Please mail your inquiry to gina@guokuncasting.com

Steel Castings, Pump Castings Tags: Centrifugal pump parts

Description

Baoding Guokun can manufacture a multitude of pump casting parts, for example, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump vane, pump bearing fram, pump suction spool, pump volute and all other customized pump cast pump components for the centrifugal pumps, vertical centrifugal pump, horizontal centrifugal pump, fire hydrant pump, gear pump, lobe pump, piston pump vacuum pump and water pump. Depending on your pump types and requirements, Baoding Guokun can cast and machine different pump replacement parts in heat-resistant stainless steel, ductile iron, gray iron, aluminum alloys and other metals.

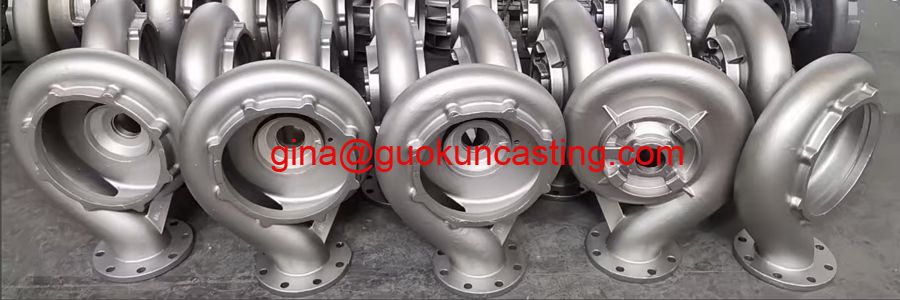

Pump castings, China sand casting foundry

Sand cast pump suction spool parts are made from a variety of metals, including:

Stainless steel pump suction spool: Stainless steel is currently one of the most widely used for submersible pump materials in the market. Stainless steel has good corrosion resistance and strength, light weight, fast heat dissipation, and can operate stably for a long time in harsh water environments. Baoding Guokun can use stainless steel 304, 316, CF8, CF8M and other stainless-steel grades to produce the submersible pump components, which suitable for water treatment in various fields such as households, agriculture and ships. The stainless-steel pump parts are produced by using silica sol investment casting process, which has tight casting tolerance, smooth casting surfaces.

Cast Iron pump suction spool: Cast iron are also widely used in various pumps for industrial and civilian fields. Cast iron has excellent mechanical properties and can meet the requirements of long-term operation of submersible pumps. Baoding Guokun can use ductile cast iron ASTM A536 and gray cast iron ASTM A48 for submersible pump replacement parts, which have the advantage of low cost and are suitable for some pumps with limited economic conditions. We can choose the clay sand casting, resin sand casting, shell mold casting process to produce various pump components as per customer’s drawings or requirements.

Aluminum alloy pump suction spool: Electric submersible pump is an important pump widely used in various water environments. In order to assure the extended the pump’s service life and improved the performance, Baoding Guokun will choose aluminum alloys to manufacture the important pump parts, such as the submersible pump motor housing. The aluminum alloy ASTM A356 T6 electrical submersible pump motor casing has good corrosion resistance, strength and lightweight, which helps to improve the overall performance and service life of electrical submersible pumps.

Sand casting process for pump suction sool:

Baoding Guokun Machinery Co., Ltd and Baoding Guokun Export and Import Trading Co., Ltd are located in Baoding city, Hebei province, China. Our sand casting factory occupies a total area of 30,000 square meters, which have casting foundry workshop, grinding, sandblasting and precision machining shop, laboratory and warehouse. Baoding Guokun has equipped with 4 sets medium-frequency electric furnaces, 15 sets automatic shell core machinery, automatic sand casting molding line, 7 sets CNC machinery, 20 sets CNC Lathe, and the complete quality inspection devices for mechanical testing and chemical analysis, including tensile strength, hardness tester, metallographic inspection, spectrometer, ultrasonic testing and special testing devices. Before shipping, the quality reports for all inspection will be issued and mailed to our customers.

The process of Baoding Guokun sand casting involves several steps after producing a professional tool or mold, including:

No.	Steps	Details
1	Pattern Creation	A two-piece metal pattern is created in the shape of the desired part, typically from iron, aluminum or wooden material.For a single casting or small batches of castings, we prefer to produce to use the wooden material to manufacture the mold to save money for customers.For other sand casting parts in large quantity, we prefer to use aluminum or iron to improve the mold’s service life.
2	Mold creation	The two shell halves are joined together and securely clamped to form the complete shell mold. If any cores are required, they are inserted prior to closing the mold. The shell mold is then placed into a flask and supported by a backing material.
3	Pouring	The mold is securely clamped together while the molten metal is poured from a ladle into the gating system and fills the mold cavity.
4	Cooling	After the mold has been filled, the molten metal is allowed to cool and solidify into the shape of the final castings.
5	Casting removal	After the molten metal has cooled, the mold can be broken and the casting removed. Trimming and cleaning processes are required to remove any excess metal from the feed system and any sand from the mold
6	Machining	Machining as per drawings

Baoding Guokun can manufacture a multitude of pump casting parts, for example, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump impeller, pump casing cover, back liner, pump vane and all other customized cast pump components for the centrifugal pumps, vertical centrifugal pump, horizontal centrifugal pump, fire hydrant pump, gear pump, lobe pump, piston pump vacuum pump, submersible pumps, electric pumps and water pump.

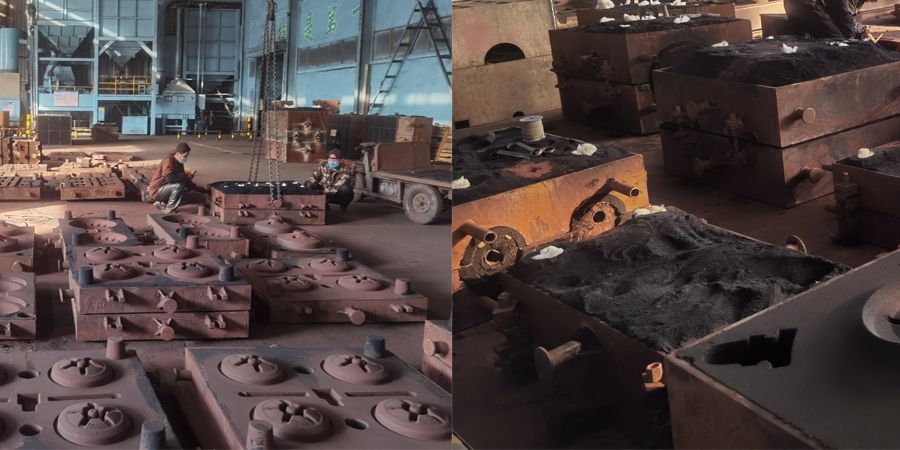

sand casting workshop

A High Quality China Foundry！

With a monthly capacity of 10,000kgs and with more than 25 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Baoding Guokun Machining Equipment

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, power generation investment casting, Medical casting, marine industry casting
