Description

Power Steering Cylinder Bracket

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, hydraulic cylinder, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a monthly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

The power steering cylinder is basically a hydraulic ram that is attached to the steering linkage. As the pump creates pressure, it is sendt to the steering box via the pressure hose. The power steering cylinders are used in the hydraulic steering system of various vehicles, such as cargo, material hanlders, trucks, tractors, etc. Baoding Guokun can produce vairou hydraulic steering components, steering bracket, power steering support, steering tractor parts, cylinder end cap, valve body end cap, pistion parts, shaft and all other metal tractor parts.

The power steering hydraulic cylinder support bracket is produced in Baoding Guokun, a professional casting factory with 25 years experience. The investment casting process is suitable for steel hydraulic cylinder bracket.

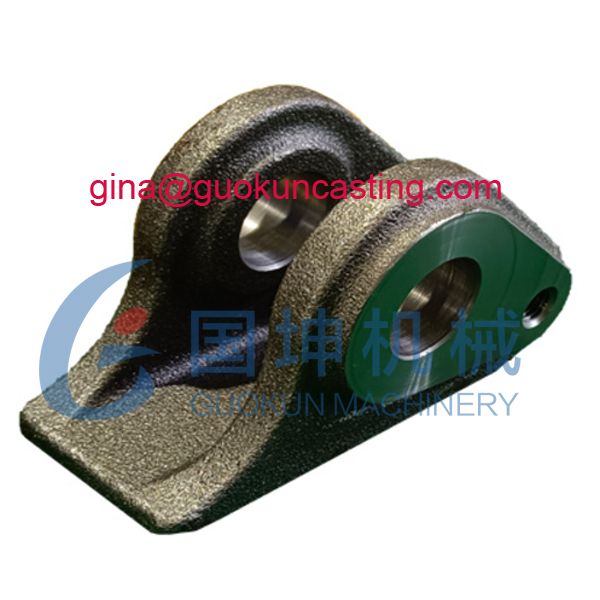

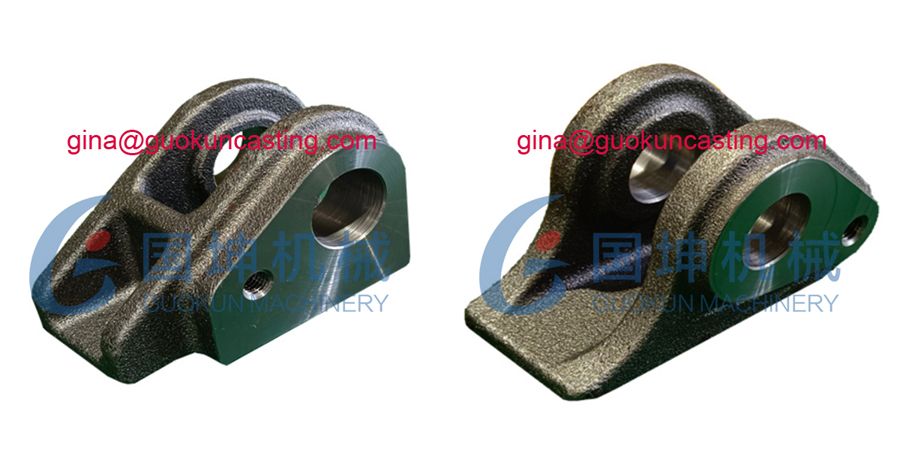

power steering cylinder bracket

Metel casting process for power steering hydraulic cylinder support bracket:

Investment casting involves pouring the liquid steel into a hollow ceramic shell. Once the liquid steel has cooled and solidified, the hydraulic cylinder mounting brackets will be casted successfully. The lost-wax investment casting technique are mainly used for mild steel, alloy steel and stainless steel eye bracket or clevis bracket. The investment casting cylinder mounting brackets are with tight tolerance, smooth finish and low-cost compared with drop forge cylinder bracket.

Advantages of Lost-wax investment casting

High dimensional accuracy: Investment casting can achieve dimensional accuracy of about +/-0.005 in per inch, more precise than sand casting process.

Excellent surface finish: The investment casting produced by Baoding Guokun can achieve excellent casting surface finish of 125 Ra, which often can eliminate the further machining’s need.

Extremely complex and intricate metal parts are castable: Investment precision casting process can create complex geometries and intricate designs.

Widely alloy selection: Almost any metal can be casted, for example, low-carbon steel, mild steel, alloy steel, stainless steel, even aluminum, brass and bronze.

No flash or parting lines should exist: Compared with close die forging or mold forging parts, the investment casting parts are with no flash and parting line. This will help to improve the effective utilization of metals and enhance surface aesthetics.

Low Cost: The investment casting of Baoding Guokun is cost-effective because that our steel investment casting parts are with near-net shape, high production yield, fine surface finish and reduced machining needs. And investment casting process has lower tooling or mold costs than other metal casting methods.

Metal for power steering cylinder bracket

The power steering hydraulic cylinder bracket is typically made from sturdy metal such as steel or alloy beacuse these bracket are designed to withstand the high pressure and forces generated during hydraulic operation.

Cast iron hydraulic cylinder brackets: Baoding Guokun recommend to manufacture these hydraulic cylinder mounting brackets by cast ductile iron material grade 500-7 and 600-3.

Cast steel hydraulic mounting brackets: Mild steel, carbon steel, alloy steel and stainless steel. For example, stainless steel CF8 or 304, CF8M or 316, carbon steel JIS SC450 or DIN GS-45, ASTM A216 WCB hydraulic cylinder brackets.

Baoding Guokun also can produce these hydraulic mounting brackets in forging process.
