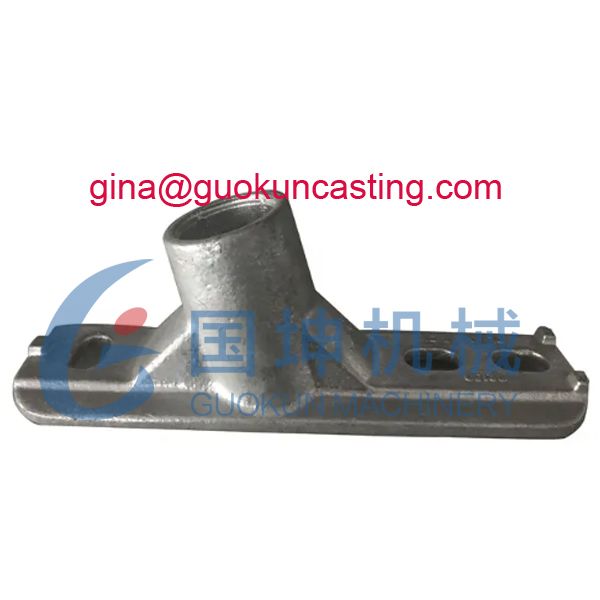

GS240 carbon steel castings

Metal: carbon steel GS240, EN 1.0455 mild steel

Metal casting: Investment casting, water glass casting, silica sol casting

Baoding Guokun, with 25 years casting experience, can produce various mild steel investment casting for various industries. Lost wax investment casting process can produce complex parts that are near-net shape. The mild steel lost-wax casting parts manufactured by Baoding Guokun is with complex shapes, tight and accurate tolerances that have a standard of ISO 8062 CT9-10, fine surface finish 6.3-12.5 μm Ra, minimal machining to reduce time and cost and cost-effective. Please mail your inquiry to gina@guokuncasting.com to get the quotation.

Steel Castings Tags: Mild steel castings

Description

Baoding Guokun, with 25 years casting experience, can produce various mild steel investment casting for various industries. Lost wax investment casting process can produce complex parts that are near-net shape. The mild steel lost-wax casting parts manufactured by Baoding Guokun is with complex shapes, tight and accurate tolerances that have a standard of ISO 8062 CT9-10, fine surface finish 6.3-12.5 μm Ra, minimal machining to reduce time and cost and cost-effective. The low carbon steel lost wax investment casting parts produced by Guokun, usually service different industries, such as railroad casting, pump casting, valve casting, heavy truck casting parts, mining casting, power generation equipment parts, etc.

China low carbon steel casting factory

What’s carbon steel?

Carbon steel is a common type of steel that is an alloy of iron and carbon. It has a higher carbon content from 0.12% to 2.5%. Other elements, such as manganese, silicon, sulfur, and phosphorous, are also present in samller amounts. And the carbon steel is broken down into 3 classes based on carbon content:

Low-carbon steel, also known as mild steel, is a metal alloy that contains iron and carbon, with a carbon content of usually less than 0.3%. Low carbon steel is less expensive, more malleable and ductile than high-carbon steel and widely applications, including automotive parts, pipe fittings, construction, agriculture, and others. Mild steel has a tensile strength of 400-550 MPa.

Medium-carbon steel is a type of carbon steel with a carbon content ranging between 0.3% and 0.6%. It also has a manganese content between 0.6% and 1.65% percent, which offe a balance between the strength and ductility. The medium carbon steel is commonly used for shafts, gears, axles, crankshafts, railway, tracks casting, train wheels, and other machinery components.

High-carbon steel is the name given to any steel with 0.6% or higher carbon content. The high carbon steel is with high strength, high hardness and more brittle than meidum carbon steel. High carbon steel is used for knife blades, hand tools, gears, bearing, springs, vehicle frames, door panels, automotive suspension components and heavy machinery parts.

The GS240 or EN 1.0455 carbon steel chemical composition and mechanical properties:

GS240 or EN 1.0455 carbon steel
Chemical composition		Mechanical properties
C%	0.23	Tensile strength	450-600MPa
Si%	0.61
Mn%	1.2	Yield strength	240MPa
P%	0.03
S%	0.025	Elongation	22%

Carbon steel investment casting process

Baoding Guokun Investment casting process steps for mild steel casting parts or low carbon steel casting components:

No.	Steps	Details
1	Patterns Makings	Creating a wax mold of the desired stainless steel pump impellers, and then adding sprues to the wax model to create a tree-like structure.
2	Shell Building	Coating the wax pattern with a layer of fire-resistant paint, and then to be sprinkled with sand, so after a period of hardening, the surface will form a layer of fire-resistant thin shell.
3	Dewaxing	Removing the wax, the shell is placed into an oven, melting the wax so that it can run out of the shell.
4	Pouring	Pouring the molten low carbon steel into the shell, and waiting for solidification under room temperature.
5	Post treatment	After cooling, knock the shell and cut the sprue gate by grinding machinery to achieve net shape impeller castings. Then shot blasting to move mill scales to assure the smooth casting surface.
6	Machining	CNC Machining

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Baoding Guokun Machining Equipment

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, power generation investment casting, Medical casting, marine industry casting
