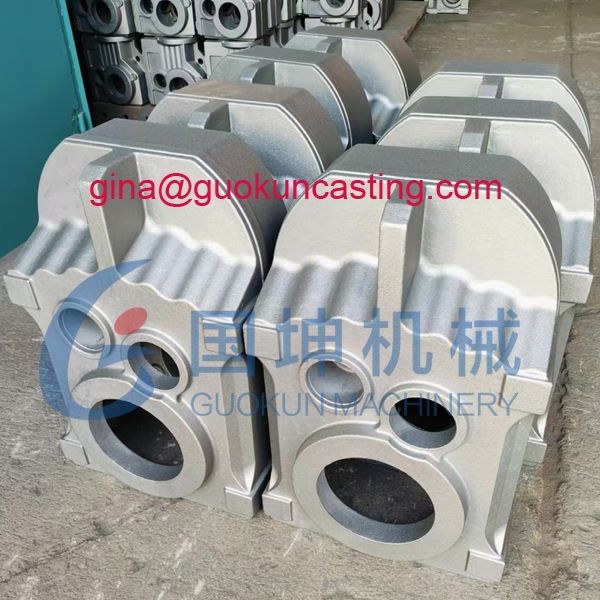

GG20 gray iron lost foam casting gearbox casing factory

A gear reduced housing, also known as a gear reducer housing or gearbox housing, is a protective enclosure that houses the components of a gear reducer or gearbox. The gear reducer is a mechanical device used to reduce the speed of an input power source (such as an electric motor) while increasing torque. Baoding Guokun is the professional casting factory, who can produce and export various gearbox parts for industrial & mechanical gearbox, such as helical gearbox housing, planetary gearbox housing, worm gearbox housing, bevel gearbox housing, coaxial gearbox frame, spur gearbox housing, and other customized gearbox casings, etc. If you need similar reducer housing, please contact gina@guokuncasting.com to get the quotation or call us 86-18132789710.

Gearbox Castings Tags: gearbox

Description

Baoding Guokun is a China metal casting factory and exporter that is concerned with the design, development and production of speed reducer parts or gear reducer components, such as output flange, housing, cover as per customer’s drawings or requirements. Speed reducers, also gear reducers, are mechanical devices that mainly serve two purposes: to increase the amount of torque produced by an input power source for a greater amount of usable work and reduce the speed of the input power source for the desired output speeds. Reduction gear comprises of a set of rotating gears that are connected to a wheel work.

The gear reduced housing, also known as a gear reducer housing or gearbox housing, is a protective enclosure that houses the components of a gear reducer or gearbox. The gear reducer housing serves several important functions:

Protection:	It protects the internal gears, bearings, and other components from dust, debris, moisture, and other environmental factors that could cause damage or wear.
Structural Support:	The housing provides a rigid structure to hold the gears, shafts, and bearings in proper alignment, ensuring smooth operation and reducing vibration.
Lubrication Containment:	Gear reducers require lubrication to minimize friction and wear. The housing contains the lubricant (oil or grease) and prevents leaks.
Heat Dissipation:	The housing helps dissipate heat generated by the gears during operation, preventing overheating and ensuring efficient performance.
Mounting:	The housing often includes mounting points or flanges to securely attach the gear reducer to a machine or structure.

Sand casting cast iron gear reducer housing produced by Baoding Guokun

Baoding Guokun Machinery Co., Ltd and Baoding Guokun Export and Import Trading Co., Ltd are located in Baoding city, Hebei province, China. Our sand-casting factory occupies a total area of 30,000 square meters, which have casting foundry workshop, grinding, sandblasting and precision machining shop, laboratory and warehouse. Baoding Guokun has equipped with 4 sets medium-frequency electric furnaces, 15 sets automatic shell core machinery, automatic sand-casting molding line, 7 sets CNC machinery, 20 sets CNC Lathe, and the complete quality inspection devices for mechanical testing and chemical analysis, including tensile strength, hardness tester, metallographic inspection, spectrometer, ultrasonic testing and special testing devices. Before shipping, the quality reports for all inspection will be issued and mailed to our customers. We can offer green sand casting, resin sand casting, precoated sand casting, shell mold casting process for your OEM casting parts. Baoding Guokun can produce and export various agricultural casting components for agricultural machinery, combine harvester, farm implements, tractors, plows, harrows, seeders, fertilizer spreaders, balers, wagons or trailers, cultivators. The investment casting and sand casting process are usually the most cost-effective casting techniques to produce complex or simple agricultural casting replacement components in low, medium and high-volume quantities. The types of gear reduced housing we can produced and exported are as follows:

Cast Iron Gearbox Reducer Housing: Durable and commonly used for heavy-duty applications. Mainly produced by sand casting process and lost foam casting process.

A cast iron castings is typically made from gray iron as it is the most common cast iron due to its good castability, machinability, and vibration damping properties, although in situations requiring higher strength and impact resistance, ductile iron might be used instead.

Gray cast iron	ASTM A48 Standard Specification for Gray Iron Castings, for example, ASTM A48 Class 30, ASTM A48M class 35, ASTM A48 class 40, etc.	More brittle but has better vibration damping and is generally cheaper than ductile iron.
Ductile cast iron	ASTM A536 Standard Specification for Ductile Iron Castings. ASTM A536 grade 65-45-12, ASTM A536 Grade 80-55-06, ASTM Gade 60-40-18, etc	Offers greater strength and ductility, making it suitable for applications with higher impact loads.

Gray cast iron is the most common cast iron for helical bevel gearbox housing, helical-bevel gearmotor housing, reducer housing, bevel helical gearbox housing, pump housing, motor housing, gearbox housing, bevel gearbox gray iron housing, etc. Baoding Guokun can offer you the machining process for your customized gearbox housing as per your drawings or design.

Aluminum speed reducer Housing: Lightweight and corrosion-resistant, often used in applications where weight is a concern. Mainly produced by gravity casting, sand casting and die casting process.

Stainless Steel Reducedr Housing: Used in corrosive environments or industries like food processing or pharmaceuticals. Mainly produced by investment casting or lost wax casting process.

What is lost foam casting process?

Lost-foam casting is a type of evaporative-pattern casting process that is similar to investment casting except foam is used for the pattern instead of wax. The lost foam casting techniques take advantage of the low boiling point of polymer foams to simplify the investment casting process by removing the need of melt the wax out of the mold. Compared with investment casting method and sand casting techniques, lost foam casting is one of the most cost-effective and environmentally friendly metal casting process for creating complex and intricate metal parts by using a foam pattern that evaporates when molten metal is poured into it:

Lost foam casting process
Create the foam pattern	Create the foam pattern: The pattern is made from pre-expanded polystyrene (EPS) that is heated in an aluminum die to expand and fuse the beads. The pattern can be carved, machined, or created using injection molding.
Coat the foam	A ceramic refractory coating is applied to the foam to protect it from the sand and create a barrier
Compact the sand	The foam pattern is placed in a flask and surrounded by unbonded sand, which is compacted using a vibration table.
Pour the metal	Pour the metal: Molten metal is poured into the flask, causing the foam to evaporate and leaving behind the metal
Remove the coating	Remove the coating: The refractory coating is removed to expose the metal part.
Surface treatment	Sandblasting and machine process.

Advantage of lost foam casting technique

Lost foam casting technique has the ability to create full, net-shape patterns with unparalleled dimensional accuracy and precision. And lost foam casting process can reduce the tooling cost, improve surface finish and minimal waste. Baoding Guokun can use lost foam casting process to produce various parts for automotive, marine, agriculture, military, motor and pump, and heavy truck applications.

Disadvantage of lost foam casting

Lost foam casting has a few disadvantages, including: high pattern costs, easily damaged patterns and non-reusable molds.

Helical Gearbox	Uses helical teeth, providing higher efficiency and quieter operation than spur gears.
Planetary Gearbox	Known for high torque density, compact size, and efficiency, making them suitable for precision applications in aerospace and robotics.
Worm Gearbox	Utilizes a worm (screw) and gear for high reduction ratios, offering a self-locking mechanism for safety.
Bevel Gearbox	Used for applications requiring right-angle power transmission with high speed or high performance.
Spur Gearbox	A simple, efficient, and cost-effective design, though often noisier

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a monthly capacity of 10,000kgs and with more than 25 years of experience ensure the short delivery and the highest valued iron & steel casting parts.
