Engine and motor castings manufacturer!

Baoding Guokun is a 25 years’ experience casting factory in sand molding process and investment casting process for motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing, motor housing end cap, motor end cover, motor housing hub end cover, motor end bracket, electric mold frame, motor end bell, motor base, motor fan cover, cooling fan, cast iron frame, end bracket, bearing housing, rear end shield, front end shield and other custom motor casting in cast iron, cast steel and aluminum alloys.

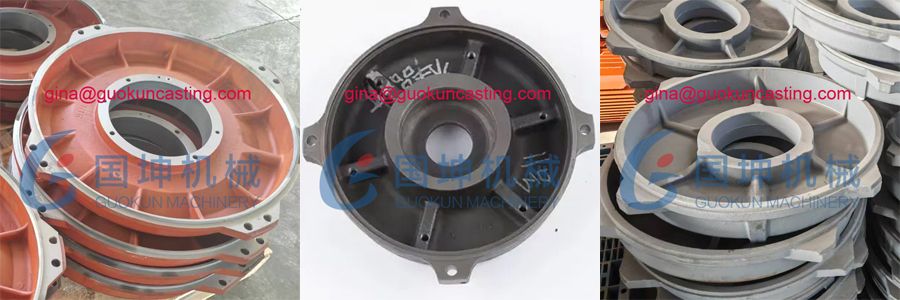

motor end cover casting factory

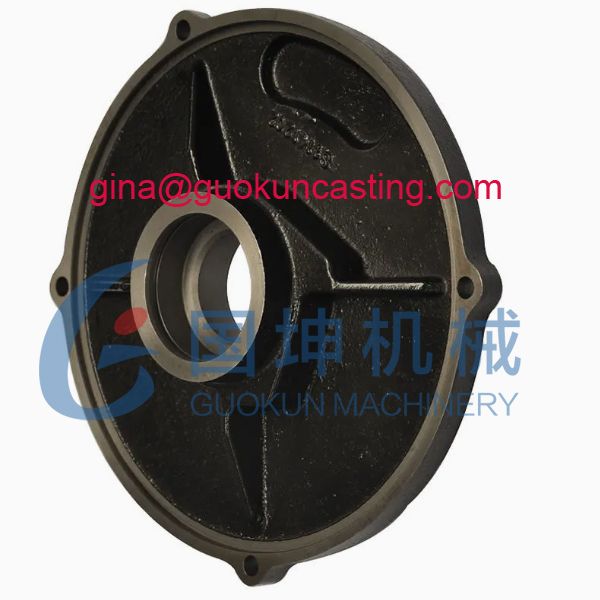

What is motor bearing cover or motor end shield?

The casting motor bearing rear end shield and front end shield is an important and protective motor casting replacment parts that seals and shields the bearings within an electric motor, preventing contaminants like dust and moisture from entering while helping to retain lubrication, thus extending the bearing’s working life and improve the motor performance.

What’s metal casting process for cast iron motor end bracket?

Sand casting process is an industrial metal casting process that involves creating a mold from sand and pouring molten metal into it, generally used to cast the shaped parts of nearly any design, including large parts and those with internal passages. Baoding Guokun can produce various sand cast parts in cast iron, ductile iron, gray iron, low-carbon steel, mild steel, alloy steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, electric motor parts, etc.

1.Sand preparation: Mixing the silica sand with a resin binder and a catalyst that is conducive to hardening process.

2.Molding: Filling the sand and resin mixture to the sandbox, after assembling the mold which usually made of wood or aluminum. Please pay attention to the uniformity of resin sand filling. Uneven filling can lead to differences in sand mold strength.

3.Hardening: Hardening is very important in the furan resin sand casting process, which refers to the solidification and molding of resin sand in the mold. During the curing process, the resin binder undergoes a chemical reaction, making the resin sand hard and possessing a certain strength. The hardening time of resin sand is usually determined by the properties of resin binder and the required castings, and generally needs to be carried out under certain temperature and time conditions.

4.Mold Removal: Once hardening finished, the mold or pattern should be removed to form the required cavity of desired metal components.

5.Metal Pouring: Molten metal is poured into the above cavity.

6.Cooling: After the metal has cooled and solidified, the sandbox is broken apart to reveal the cast metal parts. Then we could trim, sand blasting and machine them according to drawings.

What’s material for customized electric motor end cover?

Ductile iron motor bearing cover: ASTM A536 Gr.65-45-12, Gr.60-40-18, Gr.80-55-06; GGG40, GGG50, GGG60. JIS-FCD40, FCD50, FCD60, QT450-12, etc

Gray Iron motor end cover: ASTM A48 class20, calss30, class 35, class 40, DIN 1691 GG20, GG25, GG30, JIS-FC10, FC15, FC25, HT200, HT250, HT300, etc.

Stainless steel motor end cover: 316, 304, CF8, CF8M, 1.4308, 1.4408, etc.

Alloy steel motor end covers: DIN-GS-40Mn5, GS-20Mn5, 35CrMo4, ASTM A487, Grade 4 castings, etc.

Carbon steel motorend covers: ASTM A216 Gr. WCB, WCC, WCA, 1.0446, 1.0416, etc.

Aluminum alloy motor end covers: ASTM A356, A380, ADC10, ADC12, etc.

Baoding Guokun can produce various Motor castings, engine castings, motor casting company, motor casting China, motor cast, motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing, motor housing end cap, motor end cover, motor housing hub end cover, motor end bracket, electric mold frame, motor end bell, motor base, motor fan cover, cooling fan, cast iron frame, end bracket, bearing housing, rear end shield, front end shield, pump impeller and other pump parts.

Gray iron casting motor casing, motor housing produced by Baoding Guokun. If you would like cast iron motor casing, aluminum alloy motor housing, please feel free to contact gina@guokuncasting.com to get the quotation.

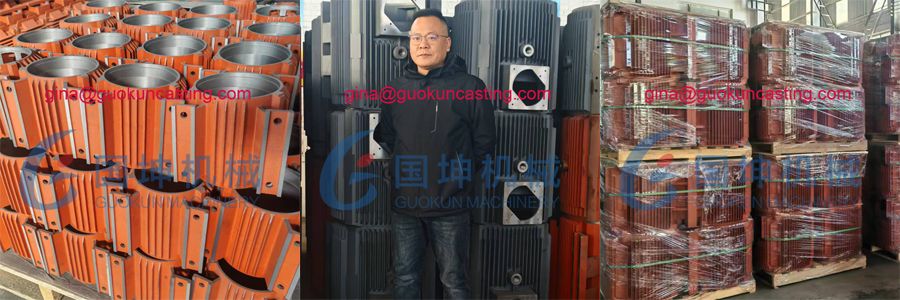

China cast iron motor casing factory

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.
