Description

Hydraulic cylinder bracket

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, hydraulic cylinder, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a monthly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Baoding Guokun can manufacture various standard and customized aftermarket hydraulic cylinder components as per customer’s drawings and samples. The forged steel mount bracket, cast ductile iron cylinder mounting brackets and aluminum clevis bracket can be utilized in a wide range industries, such as automotive, medical, food and beverage, oil and gas, and manufacturing.

What is hydraulic cylinder bracket?

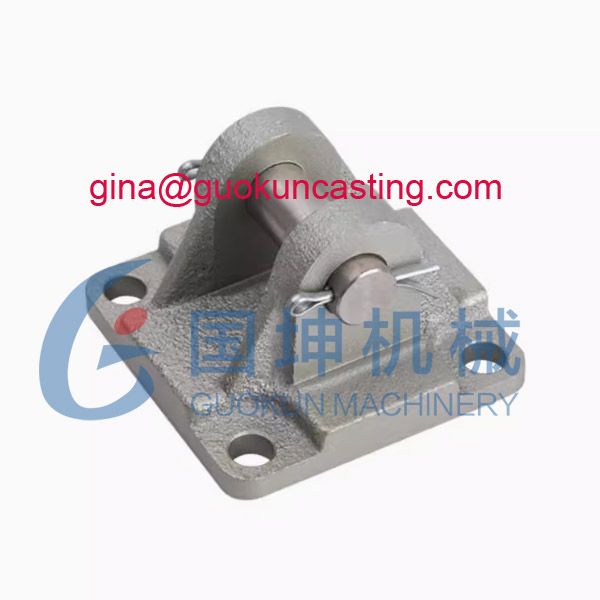

As implied by the name, hydraulic cylinder mounts are a hydraulic replacement parts used to mount your cylinder to necessary fixtures, machinery and other surfaces. Baoding Guokun can produce different hydraulic cylinder brackets, clevis bracket, eye bracket and spherical eye bracket in mild steel and ductile cast iron.

A clevis bracket generally takes the form of a solid metal piece with a flat rectangular base, fitted with holes for bolts or machine screws. The clevis bracket has two rounded wings in parallel forming a clevis. The industrial mounting cylinder bracket produced by Baoding Guokun, are commonly used in aircraft and cars, clevis brackets allow mounting of rods to flat surfaces.

Hydraulic cylinder backets type

Function of cylinder mounting bracket

Enhanced Safety: Proper mounting accessories ensure the safe operation of cylinders, particularly in high-load or high-speed applications.

Adjustable Positioning: The clevises brackets enable adjustment of cylinder positioning for specific operational needs.

Vibration Dampening: Cylinder mounting brackets help reduce vibration and noise, prolonging the lifespan of the cylinder and connected equipment.

Metal for industrial mounting bracket?

Mild steel 1045 or 4140, stainless steel AISI 304 or AISI 316, cast ductile iron ASTM A536, Grade 65-45-12 and aluminum alloy

Metal process for hydraulic cylinder brackets

Drop forging is a highly valued metal forging process that uses a pair of impression dies and a heavy hammer to form and compress metal bars or billets into complex shapes. The steel forged clevis brackets are with high density, good mechanical properties and wear resistance, compared with casting cylinder brackets.

Baoding Guokun’s drop forging process

Investment casting involves pouring the liquid steel into a hollow ceramic shell. Once the liquid steel has cooled and solidified, the hydraulic cylinder mounting brackets will be casted successfully. The lost-wax investment casting technique are mainly used for mild steel, alloy steel and stainless steel eye bracket or clevis bracket. The investment casting cylinder mounting brackets are with tight tolerance, smooth finish and low-cost compared with drop forge cylinder bracket.

Sand casting is a metal casting method uses sand molds to shape and produce metal objects and components. Baoding Guokun can cast ductile iron ASTM A536 Grade 65-45-12 or other cast iron to the customized brackets.

Steel welding process

For more information about the casting process, please check the following photo:

Baoding Guokun metal casting process

If you need flag steering cylinder, power steering cylinder, mounting foot, hydraulic cylinder mount, Cylinder Mounting Pivot Brackets, Cylinder Pivot Swivel Bracket for Mounting, Trunnion Pivot Bracket, Clevis bracket, Clevis bracket straight, Clevis bracket in angle, forged steel clevis bracket, cast ductile iron clevis bracket, fabricated steel clevis bracket, eye bracket, cast iron eye bracket, clevis bracket mounting accessories, rod end accessories, rod clevis, eye bracket, hydraulic cylinder mounts, trunnion bracket, Air Cylinder Rod Pivot Clevis Pneumatic Mounting Rear Bracket Part, Cylinder Mounting Pivot Accessories, Cylinder Mounting Pivot Brackets, Pivot Bracket, clevis pivot brackets, cylinder rear clevis bracket, stainless steel pivot bracket, aluminum alloy pivot bracket, Mounting Pneumatic Cylinder Accessories, Clevis Bracket Mount, spherical eye bracket, forged steel mounting plate, forged steel eye bracket, cast ductile iron mounting plate, cast ductile iron eye bracket, cylinder mounts and accessories, please contact Baoding Guokun.
