Cast Conveyor chain

Home Agricultural Castings Cast Conveyor chain

Cast Conveyor chain

Product name: Cast conveyor chain

Process: Lost-wax investment casting

Material: Cast steel, alloy steel, or as per your requirements.

Application: sewage treatment equipment, sugar equipment transportation, and steel factory conveyors.

Casting conveyor chain is manufactured using investment casting or sand molding casting process. The casting chain links Baoding Guokun produced are with high tensile strength, simple structure and widely applications of construction, mining and agriculture. Please contact gina@guokuncasting.com to get a quote.

Agricultural Castings

Description

Cast Conveyor chain

Casting conveyor chain is manufactured using investment casting or sand molding casting process. The casting chain links Baoding Guokun produced are with high tensile strength, simple structure and widely applications of construction, mining and agriculture.

Material and casting techniques of cast conveyor chain:

Product Name Material Casting process
Carbon steel cast conveyor chain ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205,450-240,485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446),GS-52(1.0552),GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370		 Lost wax investment casting

Sand casting
Alloy steel casting conveyor chain DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4		 Lost wax investment casting

Sand casting
Stainless steel cast chain ASTM-CF8M, CF8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi189(1.4308), G-X7Cr13(1.4001),G-X20Cr14(1.4027),1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M		 Silica sol investment casting
Ductile iron casting chain ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2		 Green-sand casting
Resin-sand castingShell mold casting
Lost foam casting
Gray iron cast chain ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350;		 Green-sand casting
Resin-sand castingShell mold casting
Lost foam casting

What’s investment casting process?

Investment casting is an industrial metal casting process based on lost-wax precision casting, generally used for producing complex-shaped metal components that require tighter tolerances, thinner walls and better surface finish than other sand cast parts. Baoding Guokun can produce various investment casting parts in low-carbon steel, mild steel, alloy steel, stainless steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc.

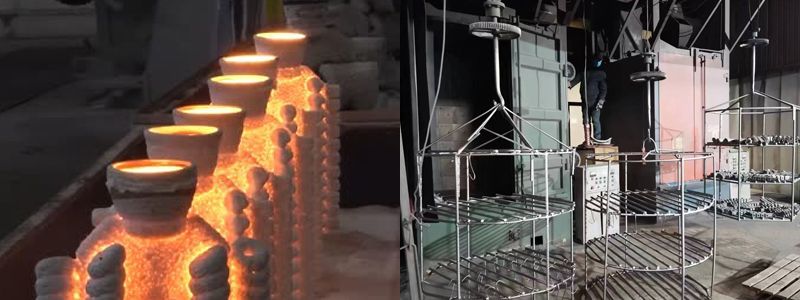

pourcing of investment casting

What’s sand casting process?

Sand casting process is an industrial metal casting process that involves creating a mold from sand and pouring molten metal into it, generally used to cast the shaped parts of nearly any design, including large parts and those with internal passages.

If you need Cast Conveyor chain, cast chain, cast chains manufacturer, cast steel conveyor chain, cast chains, casting chains, forged link chain, grain conveyor chain, cast combination chain, roller chain, conveyor chains, casting conveyor chain, cast iron chain, cast alloy steel chain, industrial chains, chain conveyor parts, please contact gina@guokuncasting.com



Baoding Guokun Machinery Co., Ltd.

Office Add: 777# Chaoyang South Street, Baoding City, Hebei, 071000, China

Factory Address: Wangdu County, Baoding City, Hebei, 071000, China

Website: www.metalcastingfactory.com

Tel: 86-312-5951319 Fax: 86-312-5951296

Phone: 86-181 3278 9710 (WhatsApp & WeChat)

Email: gina@guokuncasting.com or gina.guokun@gmail.com
