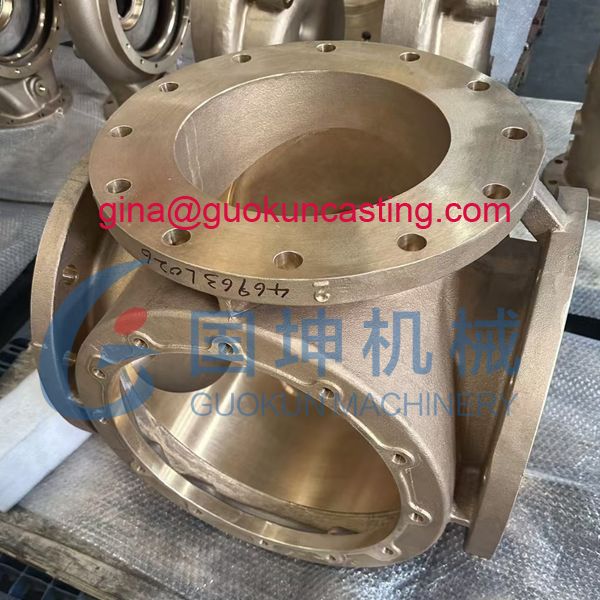

Bronze casting triple valve body manufacturer

The main materials for bronze valve bodies are tin bronze (phosphor bronze), aluminum bronze, silicon bronze, and nickel-aluminum bronze. The specific grade number depends on the application and standards, with common grades including ASTM B584 C83600, ASTM B148 C95400, and ASTM B148 C95800. These materials are chosen for their corrosion resistance, durability, and suitability for various industrial and marine applications. Baoding Guokun can offer you the investment casting, sand casting and machining process for your OEM valve components. If you need cast bronze triple valve bodies, please contact gina@guokuncasting.com or call us 86-18132789710.

Bronze Castings, Valve Castings Tags: valve body

Description

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry. Baoding Guokun has been specialized in the designing and manufacturing of various valve components for ball valve, gate valve, globe valve, butterfly valve, through conduit gate valve, knife gate valve, bellow valve, strainers and flow control components.

What is the common material for valve body?

Valve bodies can be made from a variety of materials, including metals and non-metals, depending on the fluid, pressure, tempreature and other factors. Baoding Guokun can cast the customized valve bodies as per the following metals:

Valve Body material
Cast iron valve body	more suitable for low pressure valves with working temperature between -15~200 °C and nominal pressure no more than PN16.
Ductile iron valve body	Stronger and tougher than gray cast iron valve body, making it more suitable for medium and low pressure valvess with working temperature between –30°C to 350°C and nominal pressure no more than PN40.
Carbon steel valve body	Suitable for water, steam, air, hydrogen, ammonia, nitrogen and petroleum medium. WCB valve body or WCC valve body is suitable for medium and high pressure with working tempearture range of –30°C to 425°C and nominal pressure can reach up to PN420.
Austenitic stainless steel valve body	Suitable for the valve of corrosive medium with working tempeature range of –196°C to 816°C. SS304 and SS316 is durable and resistant to corrosion, making it a good choice for a wide range of applications.
Cast copper alloy valve body	used in valves for oxygen and sea water pipelines, with a working temperature range of –273°C to 200°C.

Baoding Guokun also can produce cast iron valve body, ductile iron valve body, gray iron valve body, bronze valve body, brass valve body, stainless steel valve body, austenitic stainless steel valve body, duplex stainless steel valve body, alloy steel valve body as per your drawings or design. The stainless steel ball valve body is produced by silica sol investment casting process. The bronze tripe valve body is produced by investment casting ( small size) and sand casting ( big size) as per customer’s drawings. The common grade of bronze alloys for valve bodies Baoding Guokun produced is ASTM B584 C84400(85-5-5-5) or C83600 or EN 1982 CC491K, aluminum bronze ASTM B148 C95400, C95500, silicon bronze ASTM B584 C87300, Nickel-aluminum bronze valve body ASTM B148 C95800, etc.

Sand Casting process, resin sand casting, green sand casting, precoated sand casting, shell mold casting process

Sand casting process is an industrial metal casting process that involves creating a mold from sand and pouring molten metal into it, generally used to cast the shaped parts of nearly any design, including large parts and those with internal passages. Baoding Guokun can produce various sand cast parts in cast iron, ductile iron, gray iron, low-carbon steel, mild steel, alloy steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc.

The process of Baoding Guokun sand casting involves several steps after producing a professional tool or mold, including:

No.	Steps	Details
1	Pattern Creation	A two-piece metal pattern is created in the shape of the desired part, typically from iron, aluminum or wooden material.For a single casting or small batches of castings, we prefer to produce to use the wooden material to manufacture the mold to save money for customers.For other sand casting parts in large quantity, we prefer to use aluminum or iron to improve the mold’s service life.
2	Mold creation	The two shell halves are joined together and securely clamped to form the complete shell mold. If any cores are required, they are inserted prior to closing the mold. The shell mold is then placed into a flask and supported by a backing material.
3	Pouring	The mold is securely clamped together while the molten metal is poured from a ladle into the gating system and fills the mold cavity.
4	Cooling	After the mold has been filled, the molten metal is allowed to cool and solidify into the shape of the final castings.
5	Raw Castings	After the molten metal has cooled, the mold can be broken and the casting removed. Trimming and cleaning processes are required to remove any excess metal from the feed system and any sand from the mold
6	Machining	Machining as per drawings

sand casting workshop

A High Quality China Foundry！

With a monthly capacity of 10,000kgs and with more than 25 years of experience ensure the short delivery and the highest valued iron & steel casting parts.
